■ 제품코드(CAT No) / 가격표(Price)

CAT No.

Description

단위/갯수

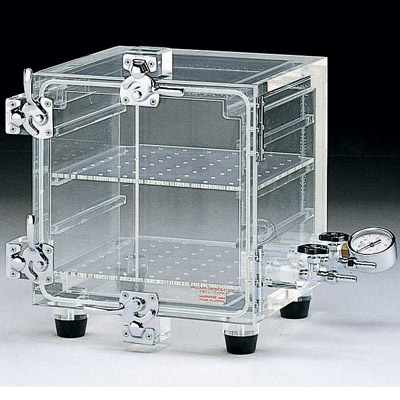

SA0177E YB-1 : Inner 260*250*260mm(H) / 2Shelf EA/1

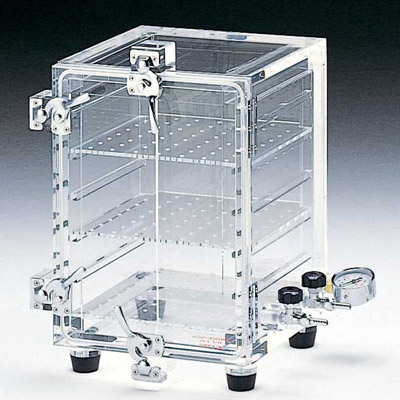

SA0178E YB-2 : Inner 260*250*360mm(H) / 3Shelf EA/1

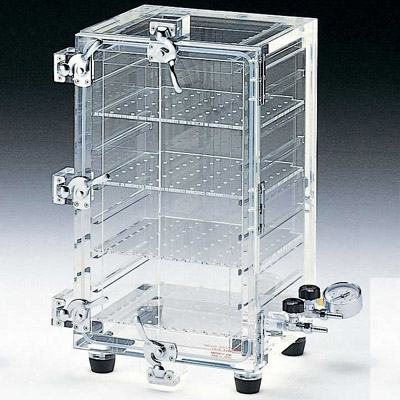

SA0179E YB-3 : Inner 260*250*460mm(H) / 4Shelf EA/1
SA0180E Spare shelf with vent holes EA/1



 용도(Applications)

■ 제품특징(Features)
* Horizontal type: Vacuum gauge & Valve are fitted on side

 규격(Specifications)

Inside dimensions(mm)
* SA0177E:  YB-1 / 260*250*260mm(H) / 2Shelf
* SA0178E:  YB-2 / 260*250*360mm(H) / 3Shelf
* SA0179E:  YB-3 / 260*250*460mm(H) / 4Shelf
* SA0180E: Spare shelf with vent holes

Outside dimensions:
* YB-1....400x320x375mm(H)
* YB-2....400x320x475mm(H)
* YB-3....400x320x590mm(H)
* Plates thickness : YB-1 & YB-2 / 20mm, YB-3 / 25mm
* Accessories : 1 Vacuum gauge (0 to 760mmHG), 2 Needle valves (9.0mm O.D)
* Adjustable shelf positions : YB-1 / 4 levels, YB-2 / 6 levels, YB-3 / 8 levels
